U12B-F高度計，0-12*0.001mm
型號：U12B-F
產品時間：2016/8/8 13:18:21
簡要描述：
U12B-F高度計采用高度光柵作為測量基準，選用增量式玻璃光柵尺，所以測量支持大測量范圍，對震動和沖擊不敏感，并具有穩定的溫度特性。
U12B-F高度計，0-12*0.001mm
|
型號 |
U12B－F |
U30B-F |
U60B-F |
|
顯示 |
液晶顯示 |
||
|
測量范圍 |
12mm/0.47” |
30mm/1.18” |
60mm/2.36” |
|
分辨率 |
0.001mm |
||
|
測量度 |
±1um |
±1um |
±1.5um |
|
測量力 |
≤1.3N |
≤1.5N |
≤2.2N |
|
測量速度 |
24m/min |
||
|
輸出 |
RS-232(2400bps) |
||
|
電源 |
USE AC adaptor(6V DC)or rechargeable battery |
||
|
測頭 |
DZ123(標準測頭) |
||

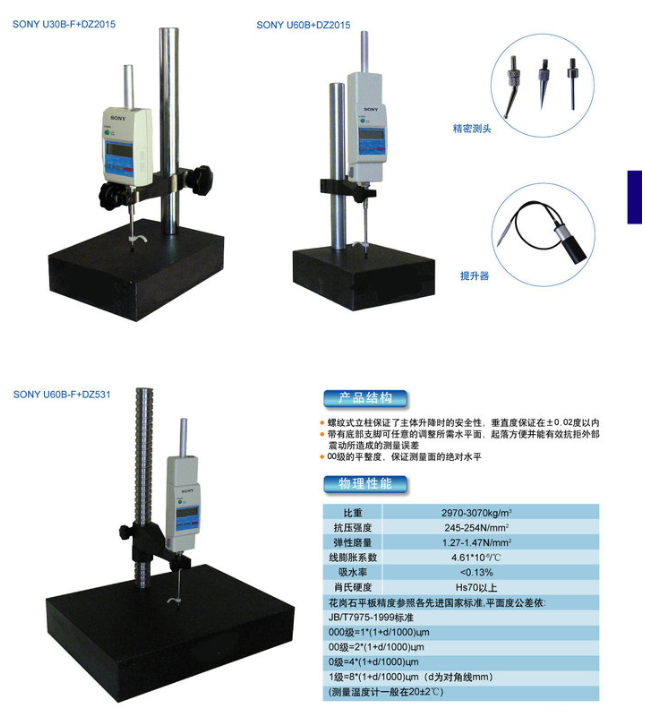

備注：DZ521 SONY原裝陶瓷測座度高耐磨，陶瓷面80mmx80mm度00級 配上SONY U30B-F整體 度誤差在1um內
|

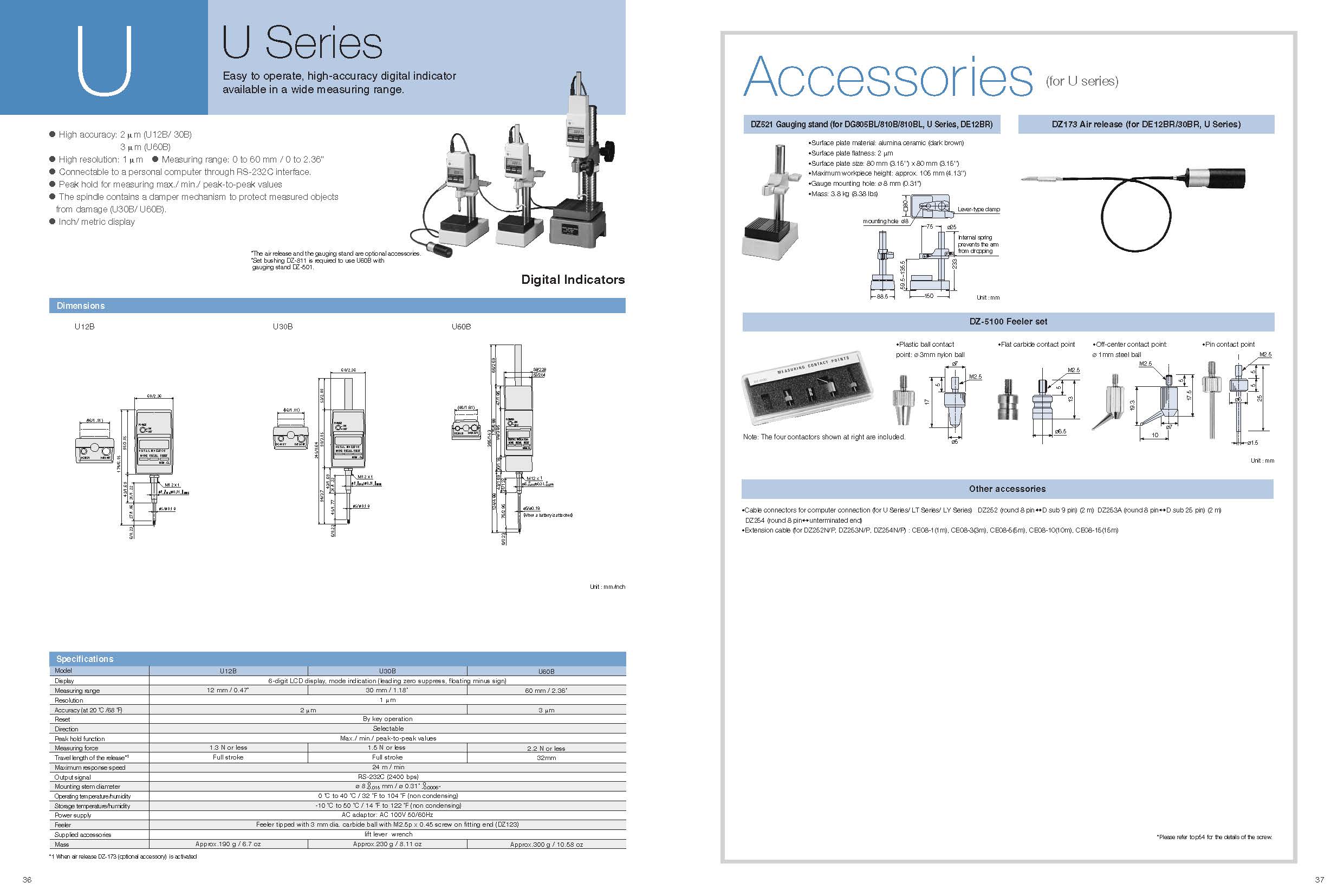

Specifications |
|||
|
Model |
U12B |
U30B |
U60B |
|
Display |
6-digit LCD display, mode indication (leading zero suppress, floating minus sign) |
||
|
Measuring range |
12 mm / 0.47" |
30 mm / 1.18" |
60 mm / 2.36" |
|
Resolution |
1 mm |
||
|
Accuracy (at 20 ?C /68 ?F) |
2 mm |
3 mm |
|
|
Reset |
By key operation
|
||
|
Direction |
Selectable |
||
|
Peak hold function |
Max./ min./ peak-to-peak values |
||
|
Measuring force |
1.3 N or less |
1.5 N or less |
2.2 N or less |
|
Travel length of the release*1 |
Full stroke |
Full stroke |
32mm |
|
Maximum response speed |
24 m / min |
||
|
Output signal |
RS-232C (2400 bps) |
||
|
Mounting stem diameter |
ø 8 0 mm / ø 0.31" 0
-0.015 -0.0006" |
||
|
Operating temperature/humidity |
0 ?C to 40 ?C / 32 ?F to 104 ?F (non condensing) |
||
|
Storage temperature/humidity |
-10 ?C to 50 ?C / 14 ?F to 122 ?F (non condensing) |
||
|
Power supply |
AC adaptor: AC 100V 50/60Hz |
||
|
Feeler |
Feeler tipped with 3 mm dia. carbide ball with M2.5p x 0.45 screw on fitting end (DZ123) |
||
|
Supplied accessories |
lift lever wrench |
||
|
Mass |
Approx.190 g / 6.7 oz |
Approx.230 g / 8.11 oz |
Approx.300 g / 10.58 oz |
