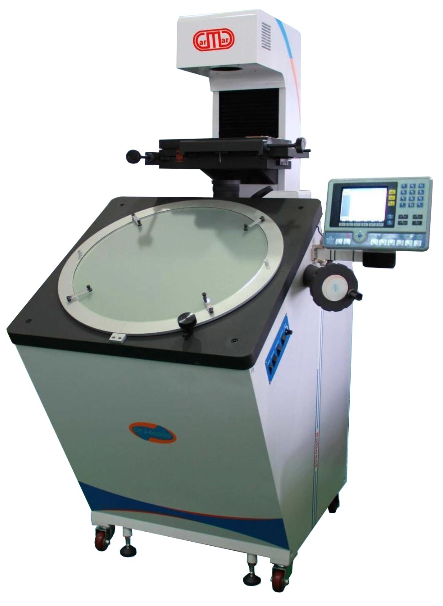

落地式投影儀PV-6020V

型號：PV-6020V

產品時間：2017/6/8 13:09:27

簡要描述：

落地式投影儀PV-6020V主要針對有大視場測量要求的企業(yè)（物方視場為120mm）,如生產手機背光板及其它手機配件、類似LCD顯示屏等數碼產品、齒輪、鐘表等企業(yè)。

產品咨詢在線客服

落地式投影儀PV-6020V

產品介紹

Fetures of PV6020V Ground type profile projectors are.

1. Reliable and affordable measuring system of high precision and efficiency.

2. An excellent solution to the most critical requirments of high quality Optical Profile Measuring Suitable for measuring different shapes.

3. Complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats ect. Most effective device to measure most 2 Dimensional parameters like linear dimensions and angles.

4. Screen size up to : Ф 615，applying range > Ф600(engraved with crosshairs)

Specifications:

Model		PV6020V
The metal table size (mm)		404*265
The glass table’s size (mm)		270*170
X-axis travel (mm)		200
Z-axis travel (mm)		100
Y-axis travel (mm)		50 (for focusing)
Screen size		Ф 615，applying range > Ф600(engraved with crosshairs)
Angle resolution		1' or 0.01º
Rotate range		0~360°
Measuring accuracy (μm)		2.5+L/75（L: Measuring length：mm）
Resolution (X/Z-axis)		0.5μm
Objective Lens	Magnification	Options
		5X(Opt.)	10X(Opt.)	20X(Opt.)	50X(Opt.)	100X(Opt.)
	Object view (mm)	Ø120	Ø60	Ø30	Ø12	Ø6
	Working Dist. (mm)	242.8	143.2	85.5	92	48.5
	Max. work piece height (mm)	50	50	50	50	48
Data processing system		DC-200 multi-function data processing system: Measure, preset and construct the graphic elements such as the point, line, circle, angle, distance, rectangle, thread and so on Conveniently axis-skew and coordinate shift Quickly data getting by foot-switch and edge detector Print out user program, graphic elements and displayed three-axis coordinates. Transfer current linear scale positions to PC by RS232. Record the measuring steps and the measure the same word pieces in batch puantity Various coordinates displaying ways: Polar, Cartesian, INC and ABS coordinates in Metric units or Imperial units. Linear error correction and segmental linear error correction Connect with linear scale or rotary encoder with Z-axis. Store 100 permanent graphic elements and 10 temporary graphic elements *DC200 metrology counter support English and Simplified Chinese display interface, the font, color and interface can also be set based on personal preferences
Power Voltage		AC 110V---240V 50/60Hz
Power		650W
Instruments dimension (mm)		120011401940
Weight (kg)		360
